Week 2

In the second week most of Hardware and some of the software testing was done. I was getting familiar with the LCD Display the Motor and most importantly the Matrix. After hours upon hours of trying to get familiar with these components I have only progressed a little bit due to the Matrix being too complicated. After some time it was time to test some of the PyGame libraries and get at least a bit familiar with it.

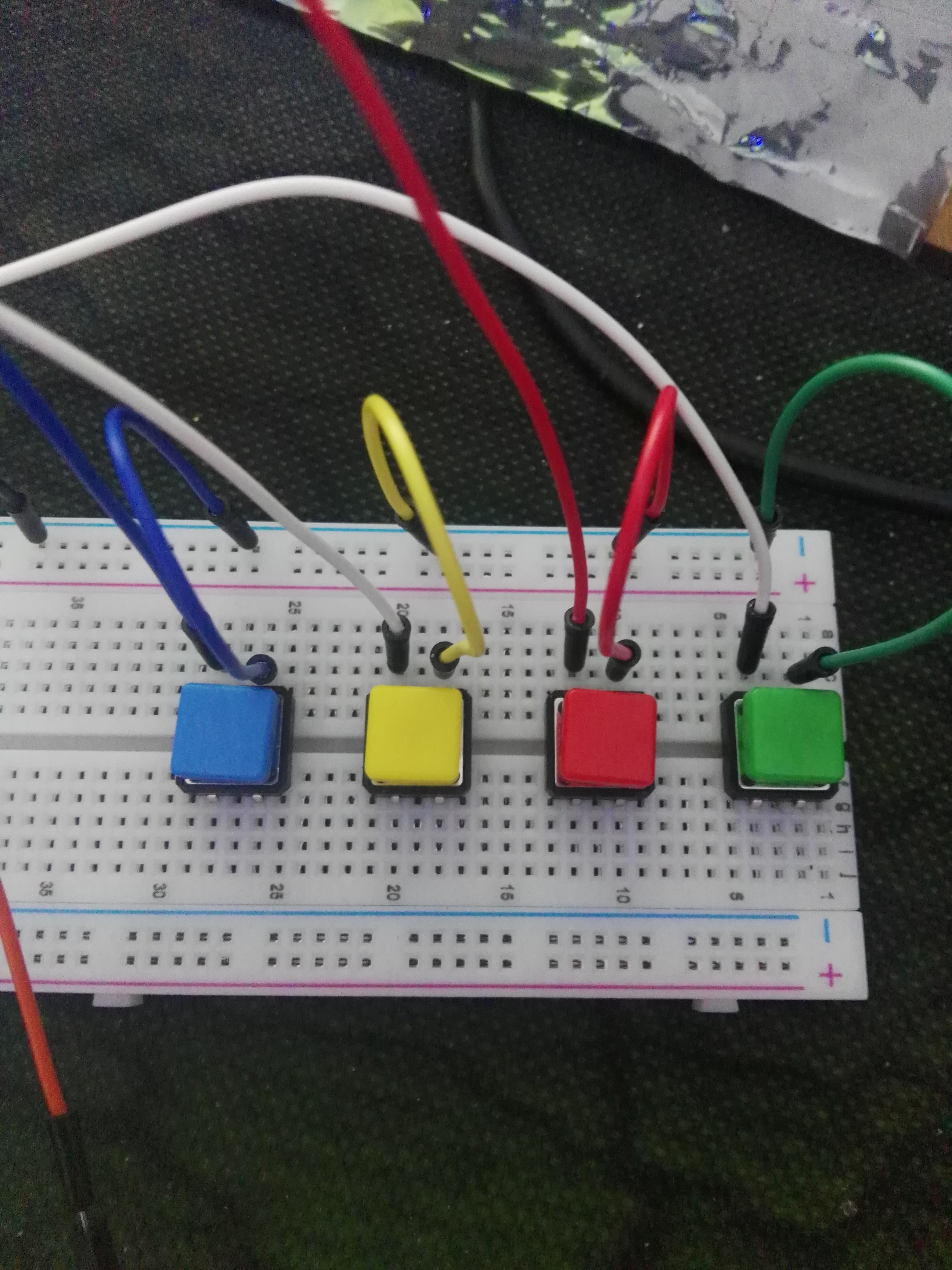

  • Buttons connection

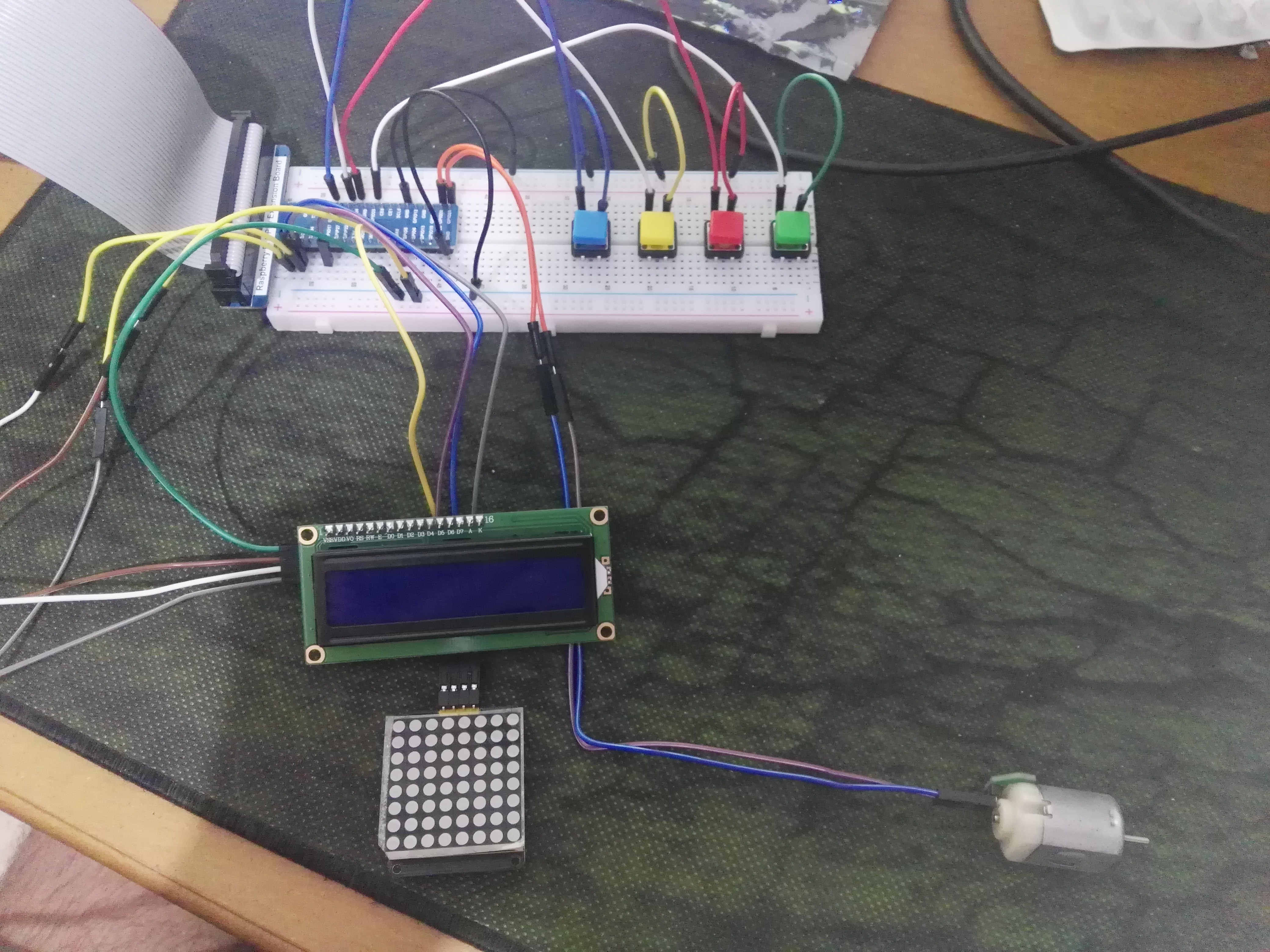

  • Everything connected except the motor

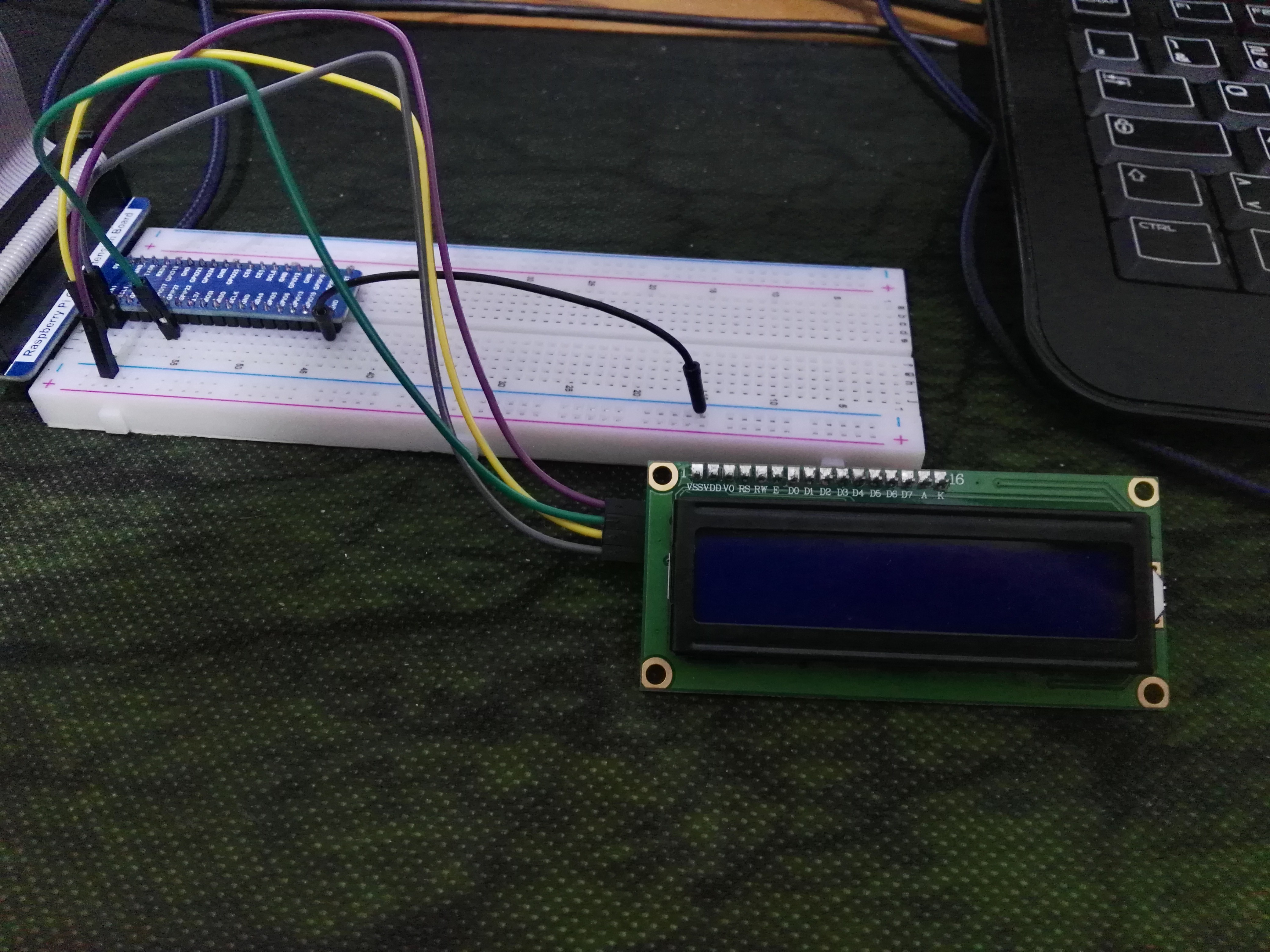

  • LCD connections

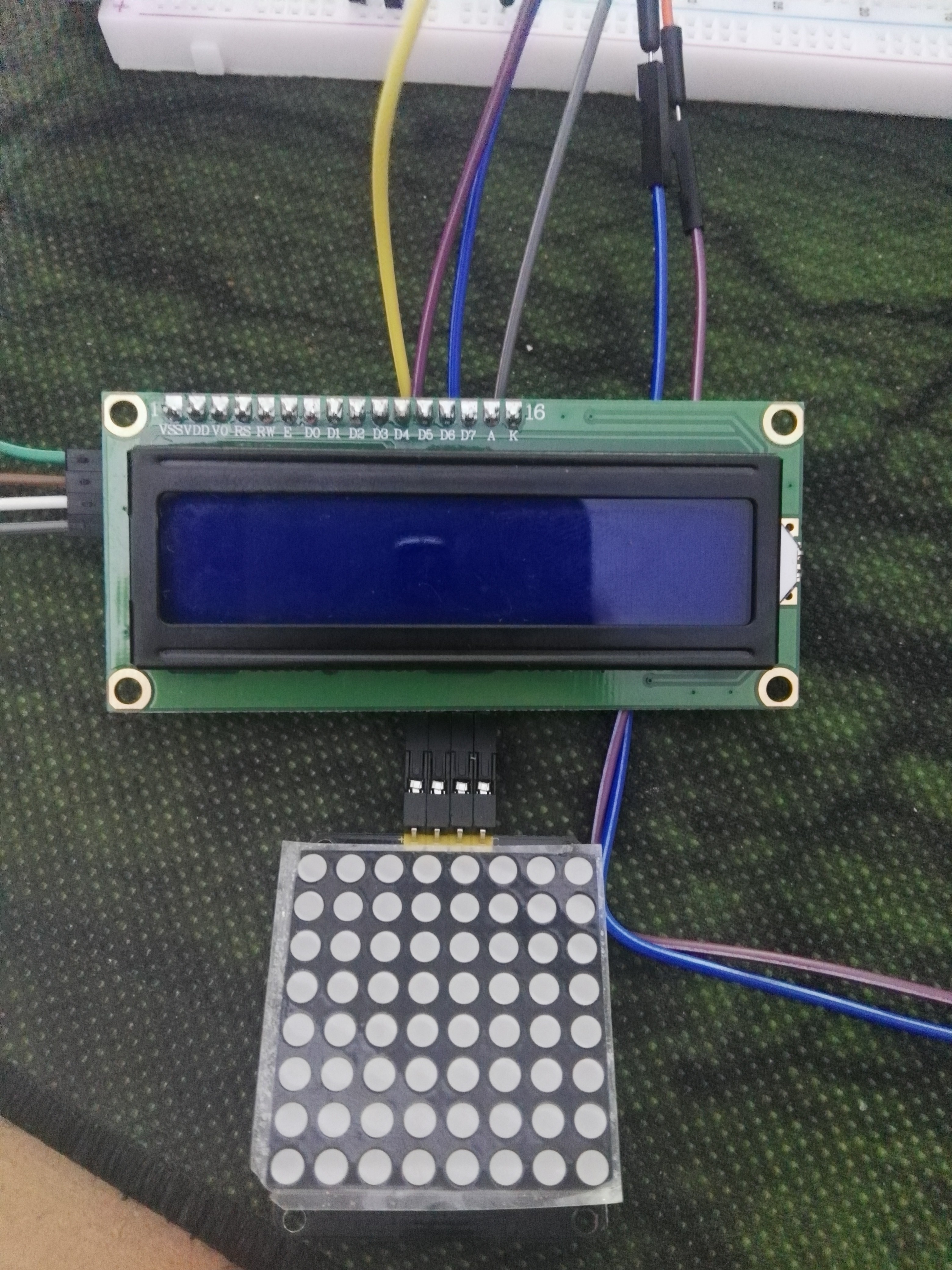

  • Matrix + LCD

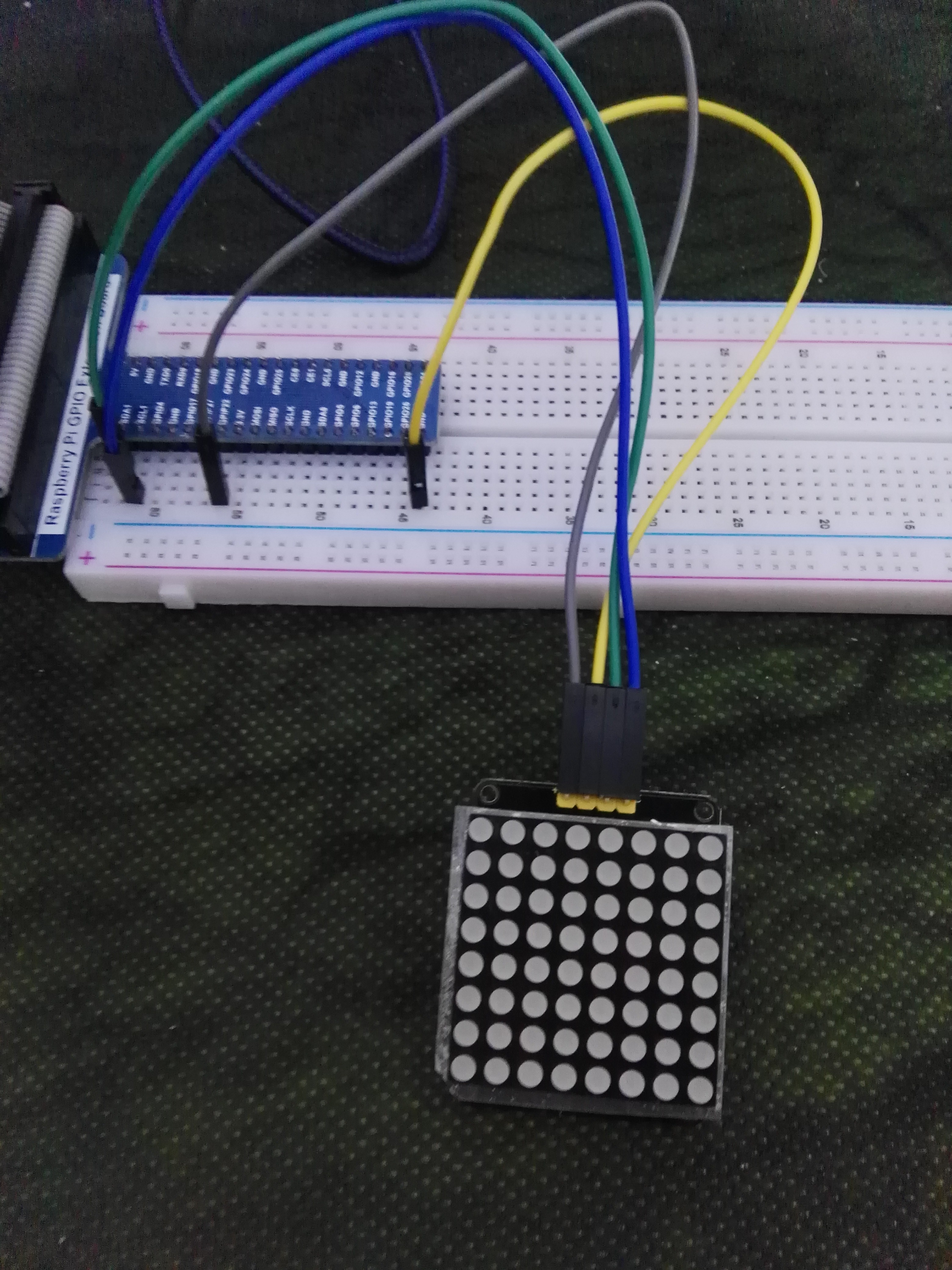

  • Matrix connection

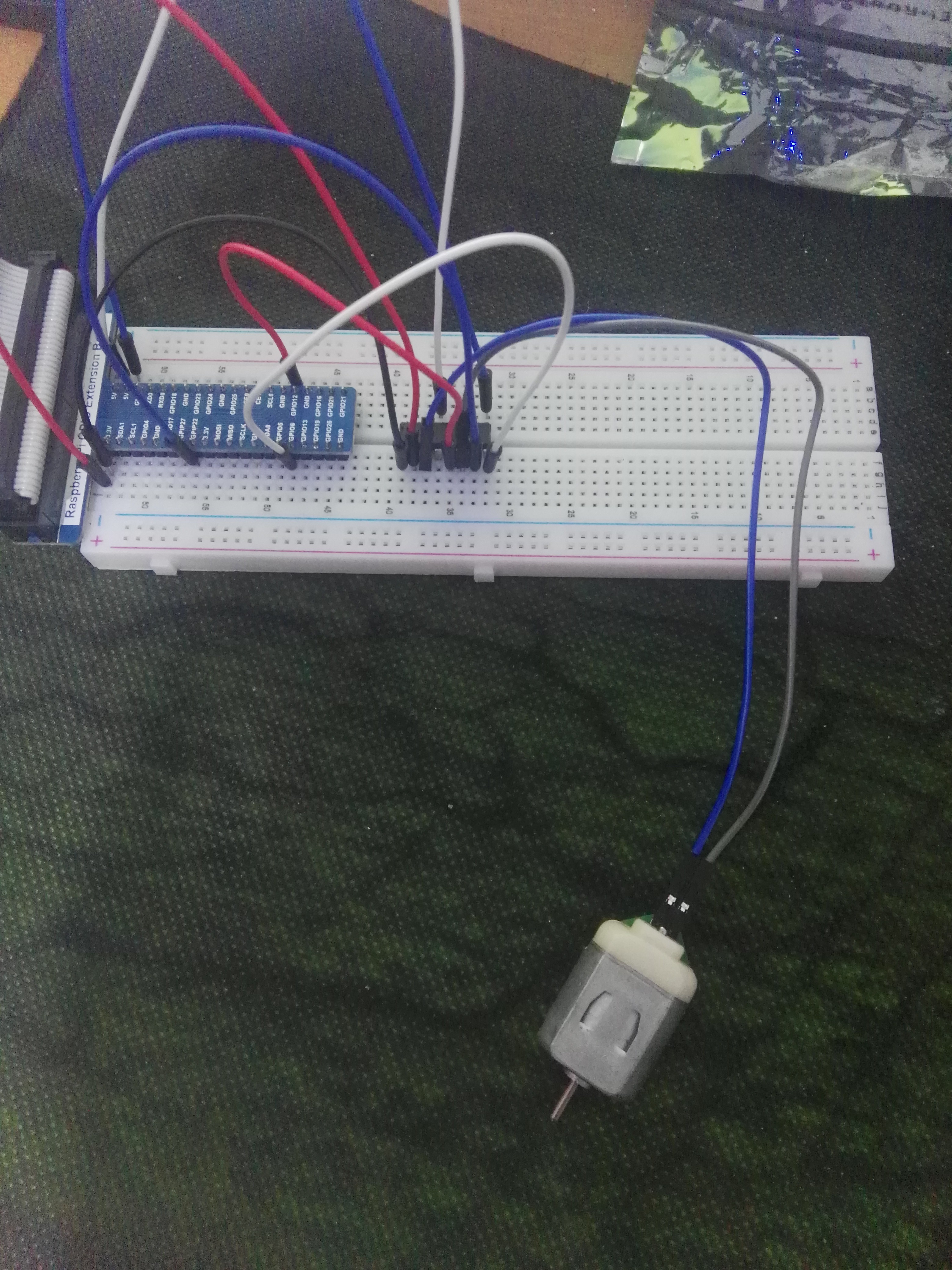

  • Motor proper and final connection
